  • Solinoid Valve
  • P70
  • GENERAL INFORMATION

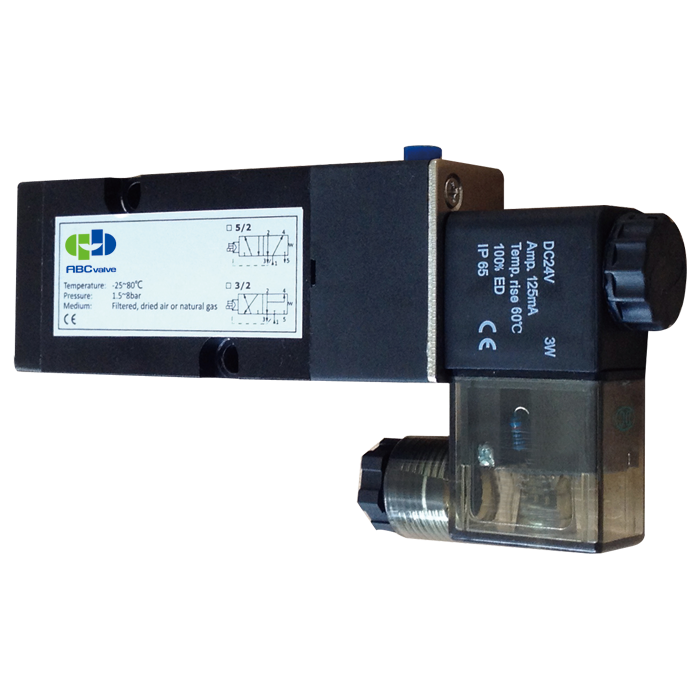

    Series P70 solenoid valve is well used to control air supplying to pneumatic actuators.

    FEATURES

    • Robust industrial 5/2 and 3/2 way solenoid valve
    • Low power consumption and long service life
    • NAMUR standard for direct mounting on actuators
    • Surface is hard anodized as protection against corrosion (20μ)
    • Low temperature construction available
    • Manuel operation for use in testing or when lack of supply voltage
    • The spring affected piston ensures that the solenoid valve returns to its starting point at power failure
    • Each solenoid valve is function tested and pressure tested

    ItemSpecification
    Construction5/2, 3/2 way
    Air consumption1100 L/min at 5bar
    Flow rateKv=0.95 m³/h
    Pressure single coil2bar to 8bar
    Coils24VDC, 24VAC, 230VAC. Optional 110 V
    Voltage indicationLED(Light emitting diode)
    Current consumption24VDC-4W, 24VAC-4VA, 230VAD-4VA
    Temperature-25℃ to +80℃
    ConnectionNAMUR, 1/4" inlet/outlet. Optional: NAMUR, 1/2" inlet/outlet
    MediumAir or inert gas
    Air qualityDIN/ISO 8573-1 Class3
    Wire connectionDIN 46244
    Protection class coilIP65 NEMA 4, 4X
    SurfaceHard anodized-20μ

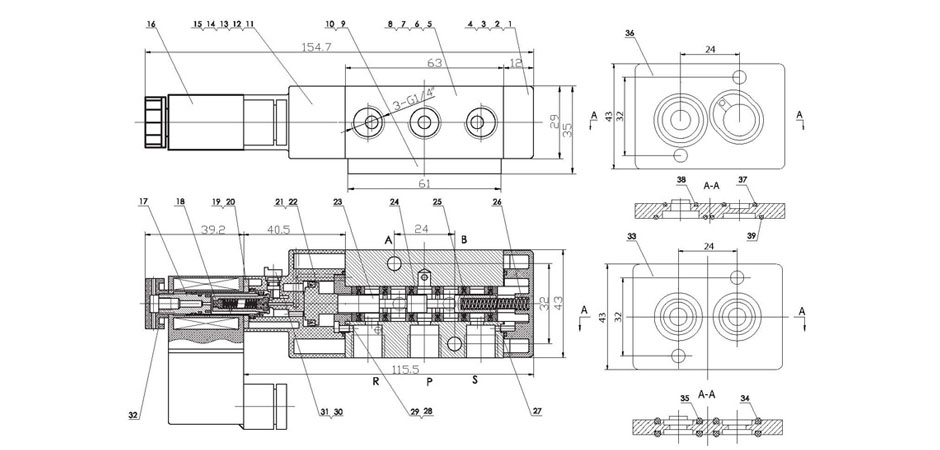

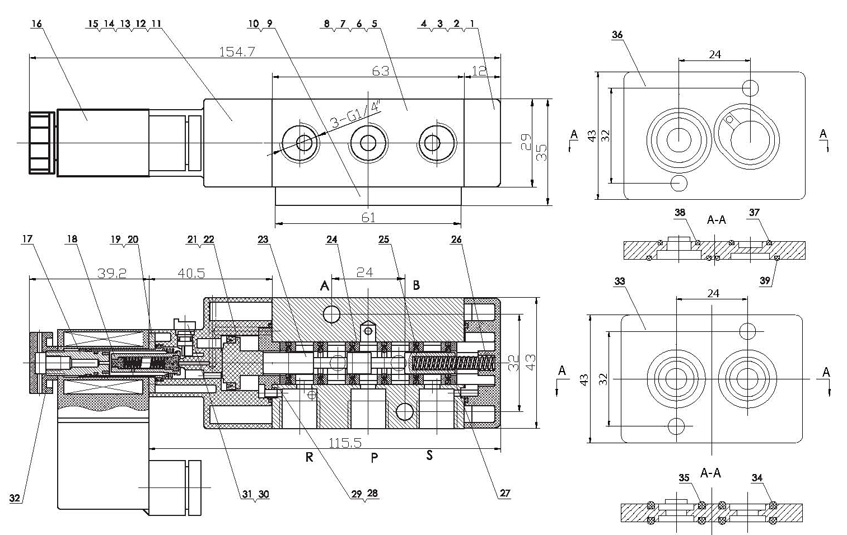

    No.Part nameMaterial
    1NutPA66
    2Coil
    3Armature
    4PlateSS304
    5Pilot bodyAluminum ADC12
    6GasketAluminum
    7BodyAluminum ADC12
    8CoreAluminum
    9O-ringNBR
    10SpringSS304
    11BoltSS304
    12ConnectorPA66
    13Manual rodPA66
    14SealNBR
    15Bottom coverAluminum ADC12
