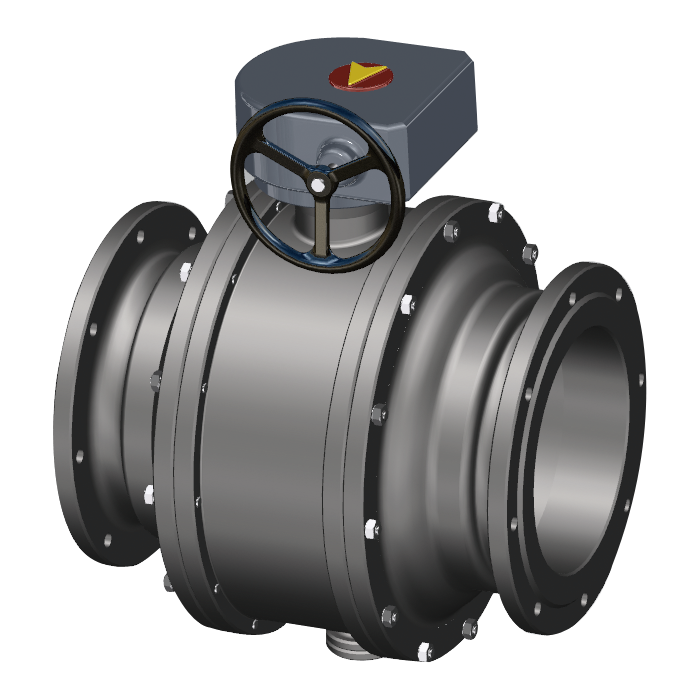

Cast Body Trunnion Mounted Ball Valves
B61
|
GENERAL INFORMATION Series B61 cast body trunnion mounted ball valve is designed according to API 608 and suitable for shutoff of various mediums. Comparing to floating ball valve, when under pressure, the ball is stable in it’s position and the force push the seat toward the ball to form a tightness, all the load come to the stem and bearings. Therefore, the seat is protected and low torque, stable sealing, long life time is assured. FEATURES • Bolted bonnet, two piece body for the size bellow 12” and three piece body for 12” and above Full bore for better Kv/Cv
• Blow-out-proof stem
• Pure PTFE, 25% carbon fiber reinforced RPTFE and metal seat available
• Anti-static devices for ball-stem-body
• Fire safe design
• Trunnion mounted ball type
• Flanged or butt welding ends
• Worm gear operator available
| Design standard | API 608/API 6D | | Fire safe standard | API 607 | | Connection | Flanged ends according to ASME B16.5, Butt welding ends to ASME B16.25 | | Nominal diameter | 2"-36" | | Pressure rating | ANSI Class150, ANSI Class300，ANSI Class600 | | Face to face | ASME B16.10 | | Temperature range | -20°C to +200°C for soft seat, -40°C to +360°C for metal seat | | Operation | Hand lever, Gear box |

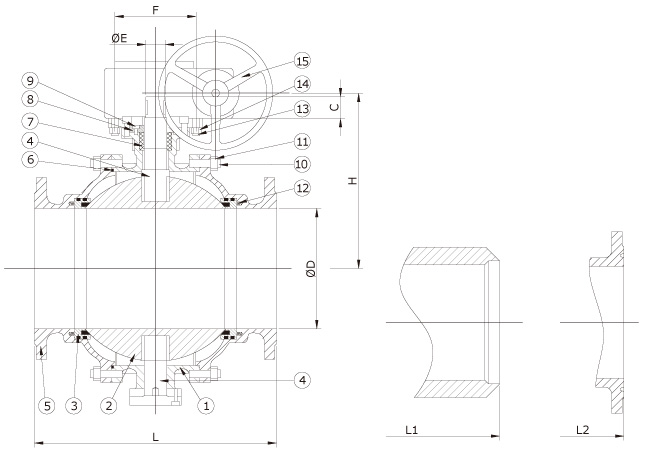

| No. | Part name | Material | | 1 | Body | CF8M | LCB | WCB | | 2 | Ball | SS316 | SS304 | SS304 | | 3 | Seat | PTFE, RPTFE, PEEK, Metal seat | | 4 | Stem | SS316 | SS304 | SS304 | | 5 | Bonnet | CF8M | LCB | WCB | | 6 | Bonnet gasket | Graphite+316 | | 7 | Packing | RPTFE, Graphite | | 8 | Gland | SS304 | | 9 | Gland bolt | A193 B8 | A193 B7 | A193 B7 | | 10 | Bonnet stud | A193 B8 | A320 L7 | A193 B7 | | 11 | Bonnet stud nut | A194 8 | A194 4 | A194 2H | | 12 | Seat spring | Inconel X-750 | SS304 | SS304 | | 13 | Top flange stud | A193 B8 | A320 L7 | A193 B7 | | 14 | Top flange nut | A194 8 | A194 4 | A194 2H | | 15 | Gear box | Carbon steel shell |
Class600 | Class600 WT(kg) | | D | C | E | F | H | L/L1 | L2 | RF/RTJ | BW | | 49 | 45 | 24 | F10 | 180 | 292 | 295 | 26 | 19 | | 64 | 55 | 28 | F12 | 192 | 330 | 333 | 35 | 25 | | 76 | 64 | 36 | F14 | 215 | 356 | 359 | 58 | 42 | | 100 | 64 | 36 | F14 | 241 | 432 | 435 | 81 | 51 | | 150 | 72 | 45 | F20 | 540 | 559 | 562 | 142 | 82 | | 200 | 81 | 58 | F25 | 635 | 660 | 664 | 287 | 200 | | 250 | 110 | 63 | F25 | 665 | 787 | 791 | 540 | 395 | | 300 | 115 | 78 | F25 | 790 | 838 | 841 | 780 | 610 | | 350 | 130 | 88 | F30 | 810 | 889 | 892 | 1000 | 805 | | 400 | 130 | 88 | F30 | 925 | 991 | 994 | 1300 | 1010 | | 450 | 150 | 98 | F30 | 985 | 1092 | 1095 | 1700 | 1350 | | 500 | 195 | 105 | F35 | 1130 | 1194 | 1200 | 2100 | 1656 | | 600 | 195 | 120 | F35 | 1185 | 1397 | 1407 | 3400 | 2775 | | 650 | | | | 1335 | 1448 | 1461 | 3800 | 3125 | | 700 | | | | 1450 | 1549 | 1562 | 4500 | 3790 |
| Design standard | API 608/API 6D | | Fire safe standard | API 607 | | Connection | Flanged ends according to ASME B16.5, Butt welding ends to ASME B16.25 | | Nominal diameter | 2"-36" | | Pressure rating | ANSI Class150, ANSI Class300，ANSI Class600 | | Face to face | ASME B16.10 | | Temperature range | -20°C to +200°C for soft seat, -40°C to +360°C for metal seat | | Operation | Hand lever, Gear box |
GENERAL INFORMATION Series B61 cast body trunnion mounted ball valve is designed according to API 608 and suitable for shutoff of various mediums. Comparing to floating ball valve, when under pressure, the ball is stable in it’s position and the force push the seat toward the ball to form a tightness, all the load come to the stem and bearings. Therefore, the seat is protected and low torque, stable sealing, long life time is assured. FEATURES • Bolted bonnet, two piece body for the size bellow 12” and three piece body for 12” and above Full bore for better Kv/Cv
• Blow-out-proof stem
• Pure PTFE, 25% carbon fiber reinforced RPTFE and metal seat available
• Anti-static devices for ball-stem-body
• Fire safe design
• Trunnion mounted ball type
• Flanged or butt welding ends
• Worm gear operator available

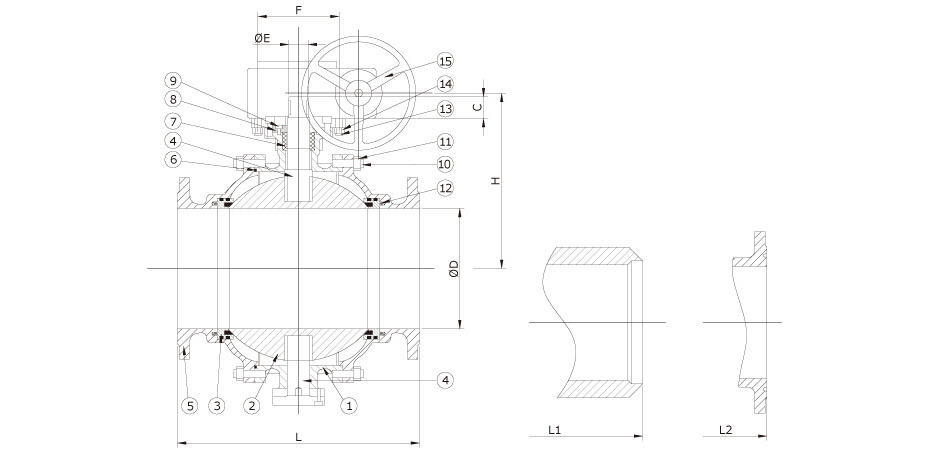

| No. | Part name | Material | | 1 | Body | CF8M | LCB | WCB | | 2 | Ball | SS316 | SS304 | SS304 | | 3 | Seat | PTFE, RPTFE, PEEK, Metal seat | | 4 | Stem | SS316 | SS304 | SS304 | | 5 | Bonnet | CF8M | LCB | WCB | | 6 | Bonnet gasket | Graphite+316 | | 7 | Packing | RPTFE, Graphite | | 8 | Gland | SS304 | | 9 | Gland bolt | A193 B8 | A193 B7 | A193 B7 | | 10 | Bonnet stud | A193 B8 | A320 L7 | A193 B7 | | 11 | Bonnet stud nut | A194 8 | A194 4 | A194 2H | | 12 | Seat spring | Inconel X-750 | SS304 | SS304 | | 13 | Top flange stud | A193 B8 | A320 L7 | A193 B7 | | 14 | Top flange nut | A194 8 | A194 4 | A194 2H | | 15 | Gear box | Carbon steel shell |
Class600 | Class600 WT(kg) | | D | C | E | F | H | L/L1 | L2 | RF/RTJ | BW | | 49 | 45 | 24 | F10 | 180 | 292 | 295 | 26 | 19 | | 64 | 55 | 28 | F12 | 192 | 330 | 333 | 35 | 25 | | 76 | 64 | 36 | F14 | 215 | 356 | 359 | 58 | 42 | | 100 | 64 | 36 | F14 | 241 | 432 | 435 | 81 | 51 | | 150 | 72 | 45 | F20 | 540 | 559 | 562 | 142 | 82 | | 200 | 81 | 58 | F25 | 635 | 660 | 664 | 287 | 200 | | 250 | 110 | 63 | F25 | 665 | 787 | 791 | 540 | 395 | | 300 | 115 | 78 | F25 | 790 | 838 | 841 | 780 | 610 | | 350 | 130 | 88 | F30 | 810 | 889 | 892 | 1000 | 805 | | 400 | 130 | 88 | F30 | 925 | 991 | 994 | 1300 | 1010 | | 450 | 150 | 98 | F30 | 985 | 1092 | 1095 | 1700 | 1350 | | 500 | 195 | 105 | F35 | 1130 | 1194 | 1200 | 2100 | 1656 | | 600 | 195 | 120 | F35 | 1185 | 1397 | 1407 | 3400 | 2775 | | 650 | | | | 1335 | 1448 | 1461 | 3800 | 3125 | | 700 | | | | 1450 | 1549 | 1562 | 4500 | 3790 |
|
|
|
