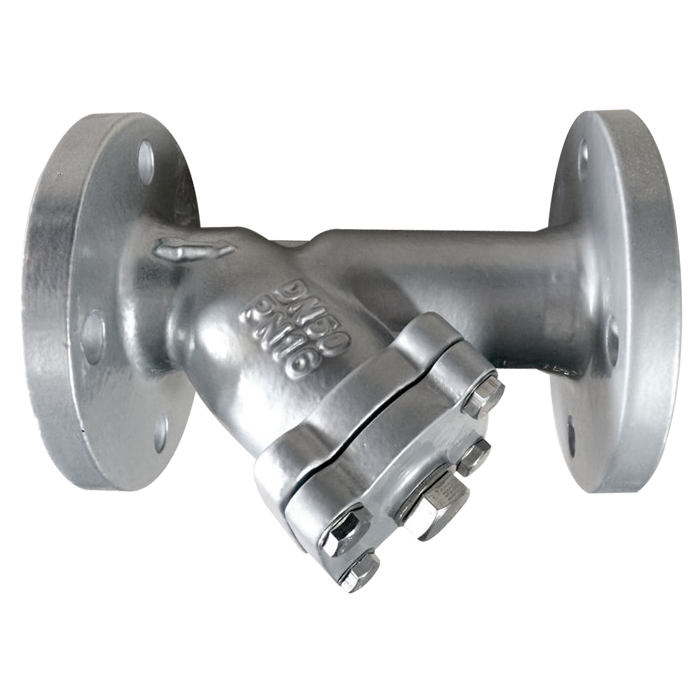

  • Flanged Ductile Iron Y Strainers
  • S12
  • GENERAL INFORMATION

    Series S12 flanged ductile iron Y strainer is designed to let the flow pass the screen so that sized particulate is captured and retained by the screen. They are most commonly used in pressurized lines, gas or liquid, but can also be used in suction or vacuum conditions. They are intended for applications where small amounts of solid particulate are expected, and where clean-out will be infrequent. If solids will flush easily from the screen, and fluid can be exhausted to atmosphere, a blow-off valve on the drain port will allow clean-out without removal of the screen, and without interrupting the process flow.

    FEATURES

    • Machined seat ensures a perfect fit for the removable, stainless steel screen All sizes come complete with flanged blow-off cover, gasket & plug
    • A drain-off valve can be installed instead of plug to remove particulate May be installed in vertical or horizontal pipelines with blow-off connection at the lower end of the screen

    ConnectionFlange
    Nominal diameterDN50-DN600
    Pressure ratingPN16
    Face to faceEN558-1 series 1
    Temperature range-20°C to +230°C
    CoatingFusion bonded epoxy

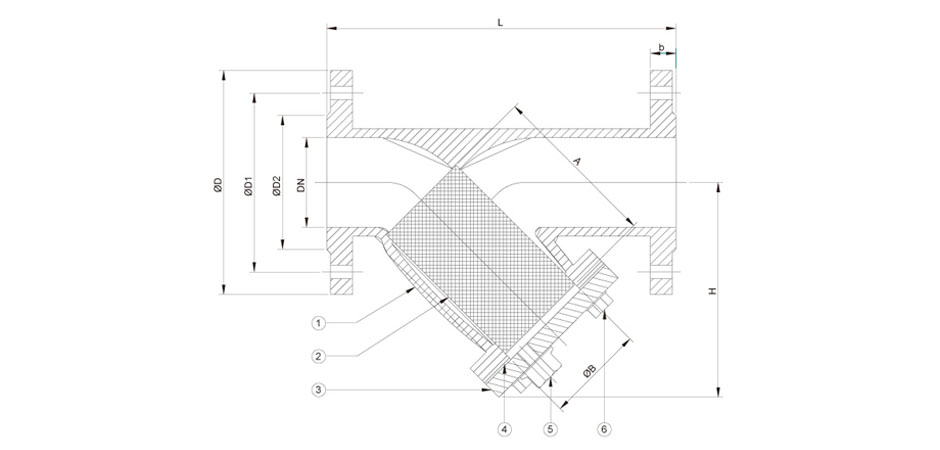

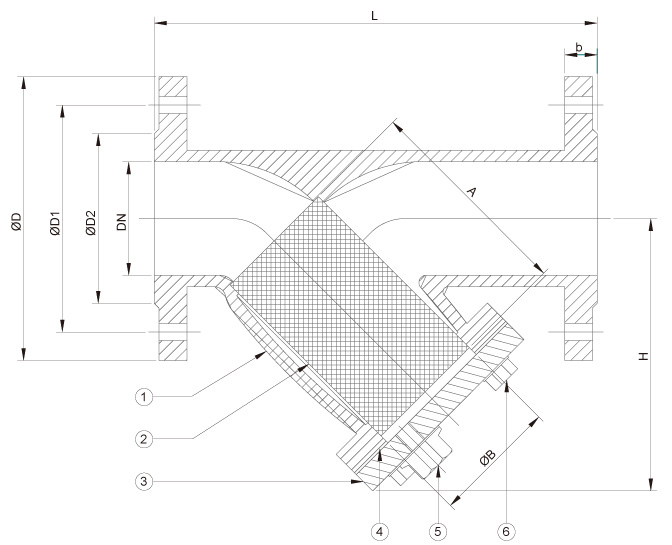

    No. Part name Material
    1 Body Ductile Iron
    2 Screen SS304
    3 Bonnet Ductile Iron
    4 Bonnet gasket PTFE
    5 Plug SS304
    6 Bolts SS304


    SIZE

    ABbDD1D2HLWT(kg)
    DNINCH
    502"1005419165125901302309
    652 1/2"125691918514510315529012
    803"165831920016012218531017
    1004"1851051922018015423035028
    1255"2051291925021018627040040
    1506"2261561928524020730048046
    2008"2902052034029526440060082
    25010"38925622400355328500730127
    30012"46030525455410374580850200
    35014"56035527520470438682980320
    40016"600405285805254907851100420
    45018"835470306405855509131200610
    50020"855520327156506109701250775
    60024"107062536840770725116014501050
