  • Flanged Cast Steel Y Strainers
  • S22
  • GENERAL INFORMATION

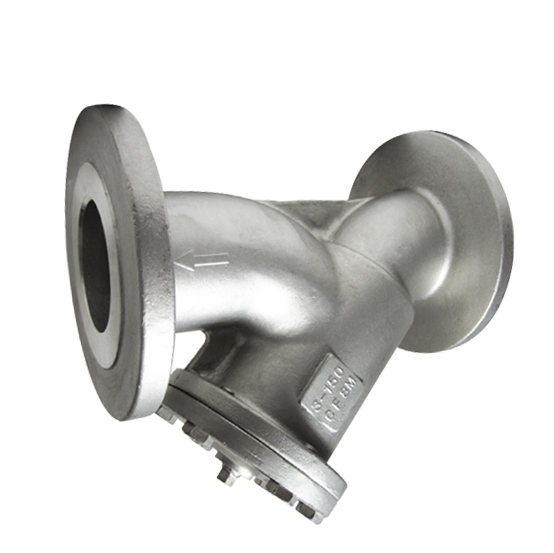

    Series S22 flanged Cast steel Y strainer is designed to let the flow pass the screen so that sized particulate is captured and retained by the screen. They are most commonly used in pressurized lines, gas or liquid, but can also be used in suction or vacuum conditions. They are intended for applications where small amounts of solid particulate are expected, and where clean-out will be infrequent. If solids will flush easily from the screen, and fluid can be exhausted to atmosphere, a blow-off valve on the drain port will allow clean-out without removal of the screen, and without interrupting the process flow.

    FEATURES

    • Machined seat ensures a perfect fit for the removable, stainless steel screen All sizes come complete with flanged blow-off cover, gasket & plug
    • A drain-off valve can be installed instead of plug to remove particulate May be installed in vertical or horizontal pipelines with blow-off connection at the lower end of the screen

    ConnectionFlange
    Nominal diameterDN50-DN600
    Pressure ratingPN16
    Face to faceEN558-1 series 1
    Temperature range-20°C to +230°C
    CoatingPainting system B

    No.Part nameMaterial
    1BodyWCB, CF8, CF8M
    2ScreenSS304, SS316
    3BonnetWCB, CF8, CF8M
    4Bonnet gasketGraphite steel
    5PlugSS304, SS316
    6BoltsSS304, SS316

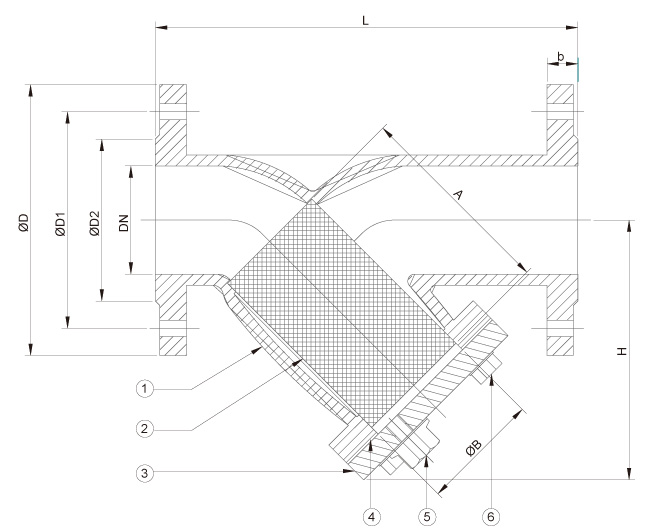

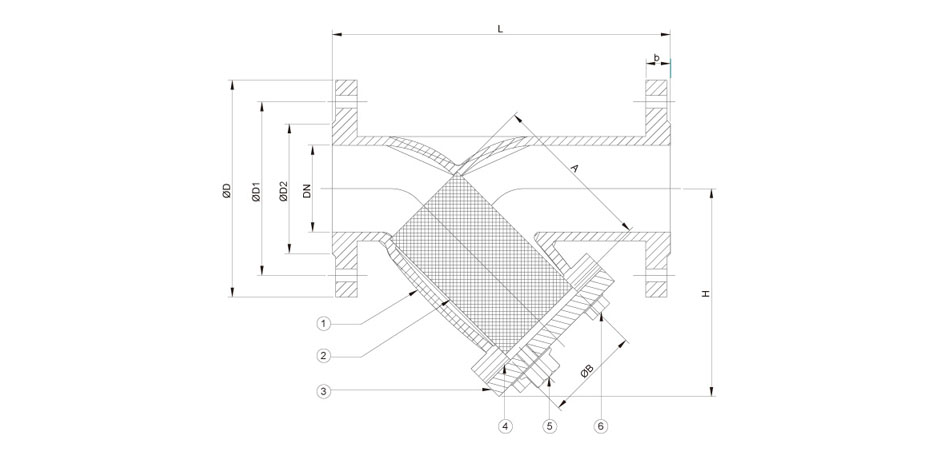

    SIZEABbDD1D2HLWT(kg)
    DNINCH
    502"1005418165125901302307
    652 1/2"125691818514510315529010
    803"165832020016012218531014
    1004"1851052022018015423035023
    1255"2051292225021018627040029
    1506"2261562228524020730048044
    2008"2902052434029526440060071
    25010"38925626400355328500730121
    30012"46030528455410374580850165
    35014"56035530520470438682980290
    40016"600405325805254907851100380
    45018"835470346405855509131200570
    50020"855520367156506109701250720
    60024"10706254084077072511601450980
