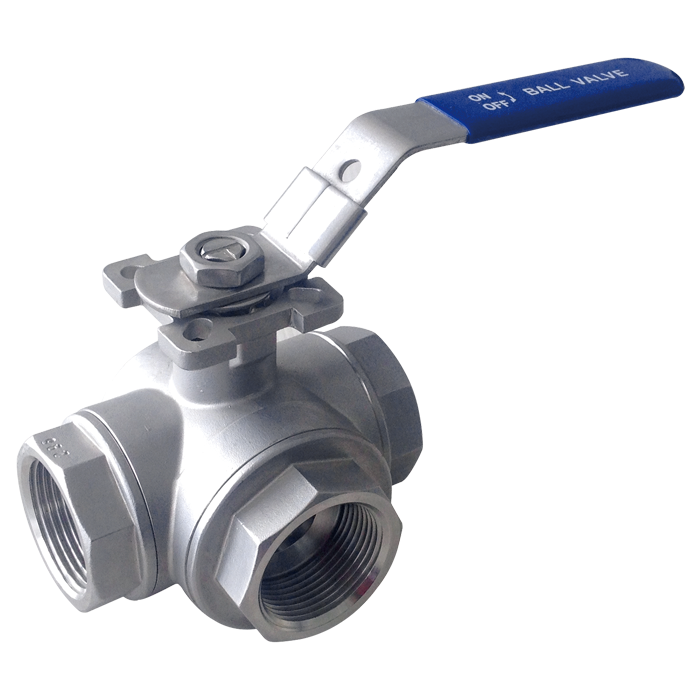

Threaded 3 Way Ball valves
B80
|
GENERAL INFORMATION Series B80 threaded 3 way ball valve can be an economical option for flow patterns that normally require multiple 2-way valves. Available in L port or T port options, this valve is excellent for diverting flow within control loop processes. FEATURES • ISO 5211 mounting pad optimizes quick and easy automation
• Regular port design
• Blowout proof stem
• L port T port options available
• Lockable hand-lever
• Both PTFE and RPTFE with 25% carbon fiber seats available
| Design standard | EN1983 | | Connection | Threaded BSPP,NPT,BSPT | | Nominal diameter | DN15-DN50,1/2"-2" | | Pressure rating | PN63 | | Temperature range | -20°C to +200°C | | Operation | Lever, Pneumatic actuator, Electric actuator |

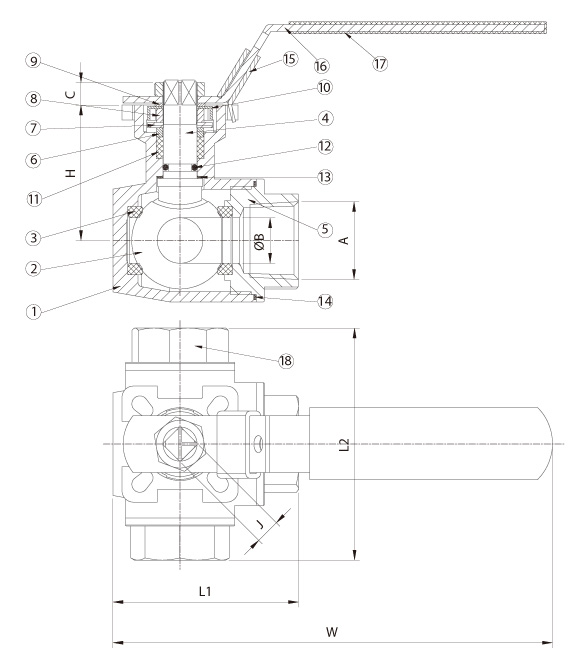

| No. | Part name | Material | | 1 | Body | CF8M | | 2 | Ball | SS316 | | 3 | Seat | PTFE, RPTFE | | 4 | Stem | SS316 | | 5 | Cap | CF8M | | 6 | Washer | SS304 | | 7 | Belleville washer | SS304 | | 8 | Gland nut | SS304 | | 9 | Washer | SS304 | | 10 | Lock washer | SS304 | | 11 | Packing | PTFE, RPTFE | | 12 | O-ring | FPM | | 13 | Thrust washer | PTFE, RPTFE | | 14 | Gasket | PTFE, RPTFE | | 15 | Handle lock | SS304 | | 16 | Handle | SS304 | | 17 | Handle sleeve | PVC | | 18 | Cap | CF8M |
SIZE | A | B | C | H | J | L1 | L2 | W | ISO 5211 | WT(kg) | | DN | INCH | | 15 | 1/2" | 1/2" | 12.5 | 9 | 42 | 9 | 64 | 79 | 163 | F03+F04 | 0.7 | | 20 | 3/4" | 3/4" | 16 | 9 | 49 | 9 | 68 | 83 | 165 | F03+F04 | 1 | | 25 | 1" | 1" | 20 | 11 | 59.5 | 11 | 82 | 104 | 190 | F04+F05 | 1.7 | | 32 | 1 1/4" | 1 1/4" | 25 | 11 | 63 | 11 | 90 | 111 | 195 | F04+F05 | 2.4 | | 40 | 1 1/2" | 1 1/2" | 32 | 14 | 73.5 | 14 | 106 | 126 | 227 | F05+F07 | 3.4 | | 50 | 2" | 2" | 38 | 14 | 82.8 | 14 | 123 | 147 | 235 | F05+F07 | 5.5 |
| Design standard | EN1983 | | Connection | Threaded BSPP,NPT,BSPT | | Nominal diameter | DN15-DN50,1/2"-2" | | Pressure rating | PN63 | | Temperature range | -20°C to +200°C | | Operation | Lever, Pneumatic actuator, Electric actuator |
GENERAL INFORMATION Series B80 threaded 3 way ball valve can be an economical option for flow patterns that normally require multiple 2-way valves. Available in L port or T port options, this valve is excellent for diverting flow within control loop processes. FEATURES • ISO 5211 mounting pad optimizes quick and easy automation
• Regular port design
• Blowout proof stem
• L port T port options available
• Lockable hand-lever
• Both PTFE and RPTFE with 25% carbon fiber seats available

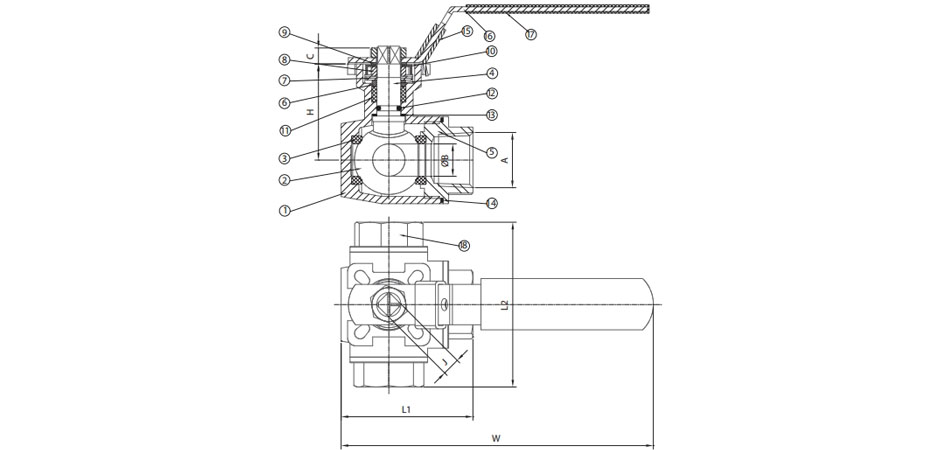

| No. | Part name | Material | | 1 | Body | CF8M | | 2 | Ball | SS316 | | 3 | Seat | PTFE, RPTFE | | 4 | Stem | SS316 | | 5 | Cap | CF8M | | 6 | Washer | SS304 | | 7 | Belleville washer | SS304 | | 8 | Gland nut | SS304 | | 9 | Washer | SS304 | | 10 | Lock washer | SS304 | | 11 | Packing | PTFE, RPTFE | | 12 | O-ring | FPM | | 13 | Thrust washer | PTFE, RPTFE | | 14 | Gasket | PTFE, RPTFE | | 15 | Handle lock | SS304 | | 16 | Handle | SS304 | | 17 | Handle sleeve | PVC | | 18 | Cap | CF8M |
SIZE | A | B | C | H | J | L1 | L2 | W | ISO 5211 | WT(kg) | | DN | INCH | | 15 | 1/2" | 1/2" | 12.5 | 9 | 42 | 9 | 64 | 79 | 163 | F03+F04 | 0.7 | | 20 | 3/4" | 3/4" | 16 | 9 | 49 | 9 | 68 | 83 | 165 | F03+F04 | 1 | | 25 | 1" | 1" | 20 | 11 | 59.5 | 11 | 82 | 104 | 190 | F04+F05 | 1.7 | | 32 | 1 1/4" | 1 1/4" | 25 | 11 | 63 | 11 | 90 | 111 | 195 | F04+F05 | 2.4 | | 40 | 1 1/2" | 1 1/2" | 32 | 14 | 73.5 | 14 | 106 | 126 | 227 | F05+F07 | 3.4 | | 50 | 2" | 2" | 38 | 14 | 82.8 | 14 | 123 | 147 | 235 | F05+F07 | 5.5 |
|
|
|
