  • Threaded Stainless Steel Y Strainers
  • S21
  • GENERAL INFORMATION

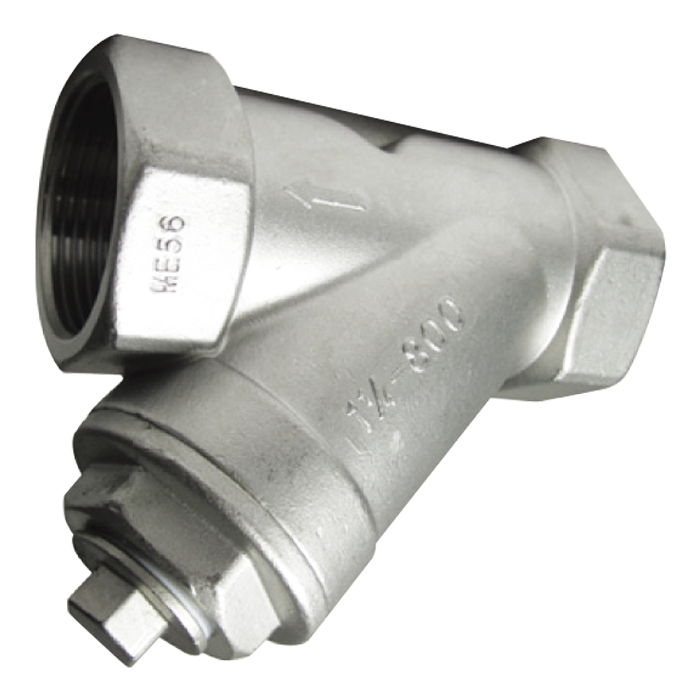

    Series S21 threaded stainless steel Y strainer is designed to let the flow pass the screen so that sized particulate is captured and retained by the screen. They are most commonly used in pressurized lines, gas or liquid, but can also be used in suction or vacuum conditions. They are intended for applications where small amounts of solid particulate are expected, and where clean-out will be infrequent. If solids will flush easily from the screen, and fluid can be exhausted to atmosphere, a blow-off valve on the drain port will allow clean-out without removal of the screen, and without interrupting the process flow.

    FEATURES

    • Machined seat ensures a perfect fit for the removable, stainless steel screen All sizes come complete with threaded blow-off cover, gasket & plug
    • A drain-off valve can be installed instead of plug to remove particulate May be installed in vertical or horizontal pipelines with blow-off connection at the lower end of the screen

    ConnectionThreaded BSPP, NPT
    Nominal diameter1/4"-3"
    Pressure ratingPN60
    Temperature range-20°C to +230°C

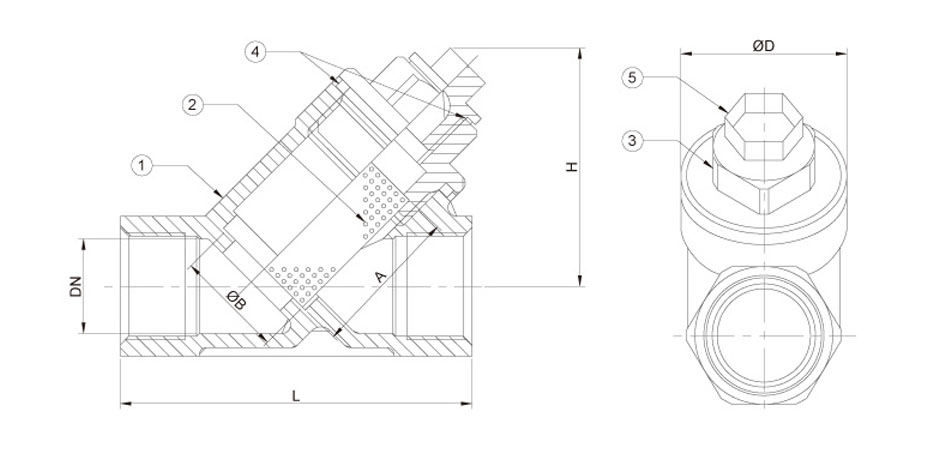

    No.Part nameMaterial
    1BodyCF8M
    2ScreenSS316
    3BonnetCF8M
    4GasketPTFE
    5PlugCF8M

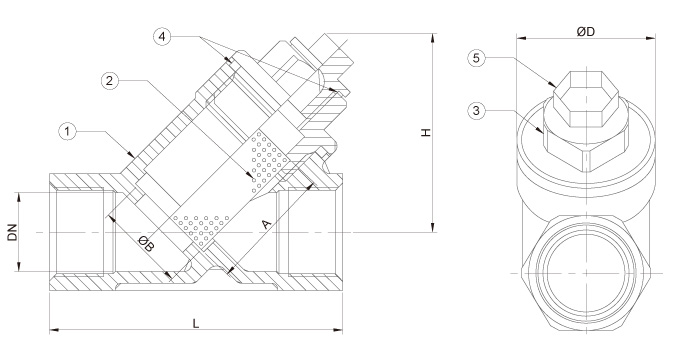

    SIZEABDHLWT(kg)
    DNINCH
    81/4"27203145650.2
    103/8"27203145650.2
    151/2"27203145650.2
    203/4"37253653800.4
    251"47324568900.7
    321 1/4"523850721050.8
    401 1/2"624559801201
    502"755775971402
    652 1/2"7769951121704
    803"97881111291957
