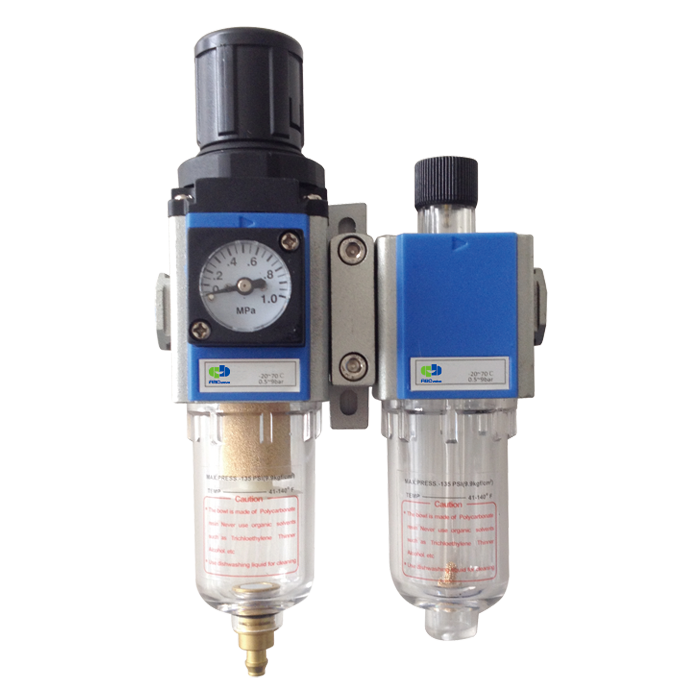

  • Air Pressure Filter
  • P31
  • GENERAL INFORMATION

    Series P31 air pressure filter is for removing water and particles of air to pneumatic actuator.

    FEATURES

    • Fast and reliable fixed connection, easy installation and usage
    • Stable adjustment of pressure, high precision of repetition
    • High efficiency of removing water and solid particles
    • Three different ways of draining water for choice: Manual, Auto and DP

    Operating mediumAir
    Joint pipe boreG thread (PT,NPT are available on request)
    Filter element roughness40um & 5um
    Adjustable pressure range0.15~0.9MPa
    Max. adjustable pressure1.0MPa
    Pressure resistance ensurance1.5MPa
    Operating temperature range5~60℃
    Suggested lubricantISO VG 32 or same grade oil
    Max adjustable pressure for low pressure type0.4MPa

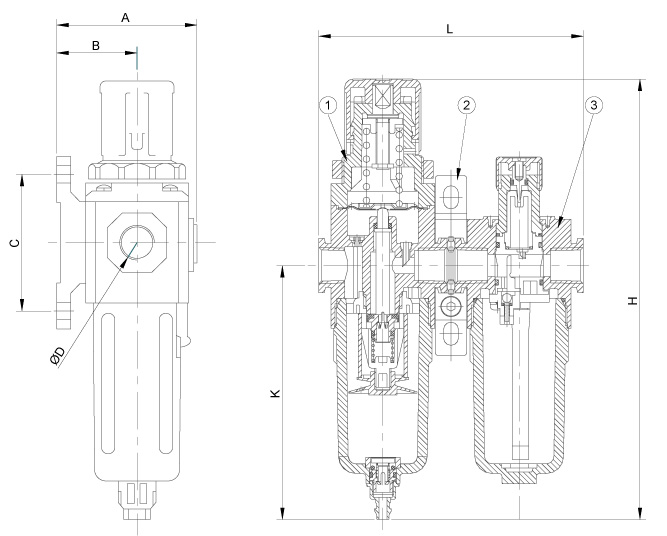

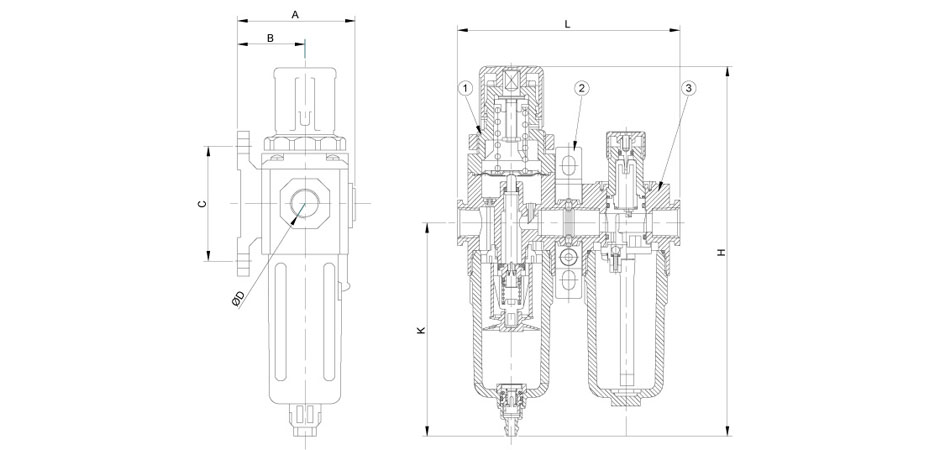

    No.Part name
    1Pressure regulating part
    2T bracket
    3Oil feeder


    TYPE

    ABCDHLKCapacity of filter cupCapacity of feed cupWeight
    200-06623050G1/8157978910CC25CC425g
    200-08623050G1/4157978910CC25CC425g
    300-08724270G1/422612414340CC75CC980g
    300-10724270G3/822612414340CC75CC980g
    300-15724270G1/222612414340CC75CC980g
    400-10865080G3/827016416680CC160CC1950g
    400-15865080G1/227016416680CC160CC1950g
