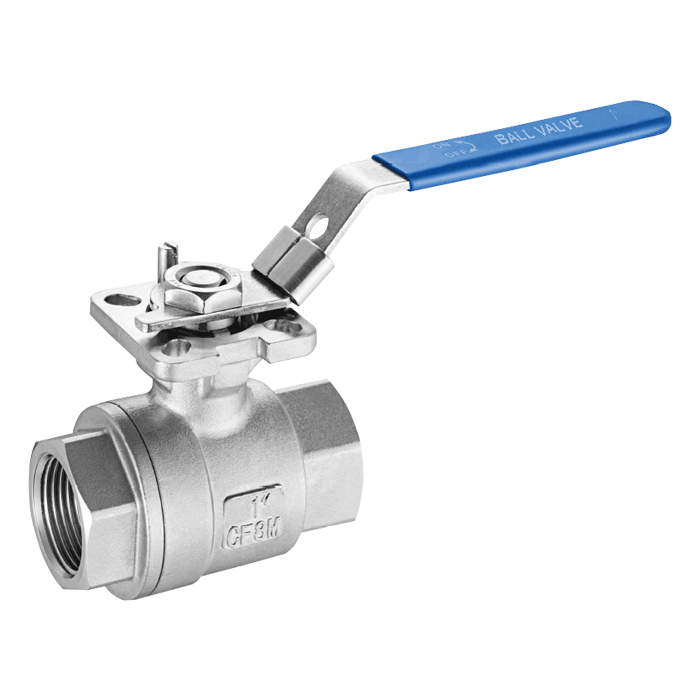

ISO Top 2PC Threaded Ball Valves
B25
|
GENERAL INFORMATION Series B25 ISO top 2pc threaded ball valve is full bore designed and suitable for shutoff of various medium without much dirt such as air, gas, water, oil and liquids. FEATURES • 2 piece compact design of body Full bore for better Kv/Cv
• Investment stainless steel casting with meticulous surface
• Blow-out-proof stem
• Both pure PTFE and 25% carbon fiber reinforced RPTFE seat available
• Pressure relief hole in ball slot
• ISO5211 direct mounting pad for easy automation
• Anti-static devices for ball-stem-body
| Connection | Threaded BSPP, Alternative NPT, BSPT | | Nominal diameter | 1/2"-3" | | Pressure rating | PN63 | | Face to face | DIN3202 M3 | | Temperature range | -20°C to +200°C | | Operation | Hand lever, pneumatic actuator, electric actuator |

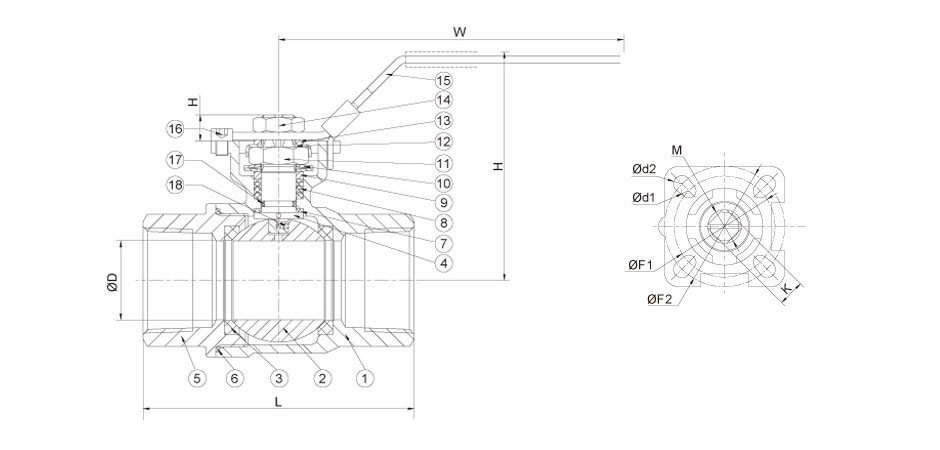

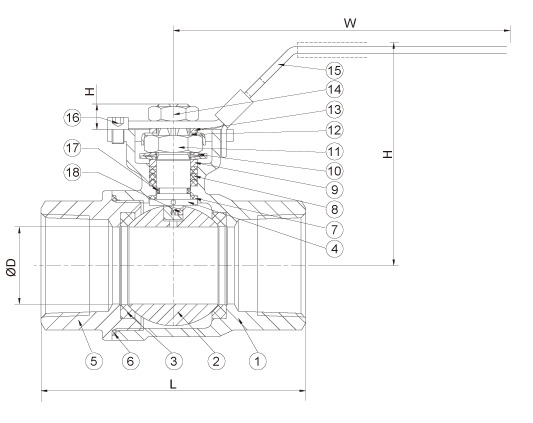

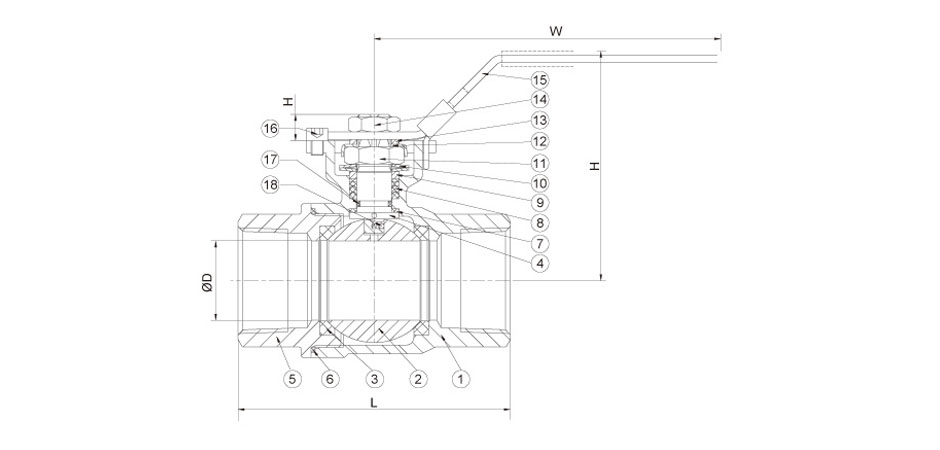

| No. | Part name | Material | | 1 | Body | CF8M | CF8 | WCB | | 2 | Ball | SS316L | SS304 | SS304 | | 3 | Seat | PTFE,RPTFE | | 4 | Stem | SS316L | SS304 | SS304 | | 5 | Cap | CF8M | CF8 | WCB | | 6 | Body gasket | PTFE | | 7 | Thrust washer | PTFE,RPTFE | | 8 | Stem packing | PTFE,RPTFE | | 9 | Gland | SS304 | | 10 | Belleville washer | SS304 | | 11 | Nut | SS304 | | 12 | Stop lock cap | SS304 | | 13 | Washer | SS304 | | 14 | Nut | SS304 | | 15 | Handlever | SS304 | | 16 | Stop bolt | SS304 | | 17 | O ring | FPM | | 18 | Anti-static device | SS304 |

| SIZE | d | H | L | W | Mounting flange | Stem | WT(kg) | | DN | INCH | ISO5211 | F1 | d1 | F2 | d2 | K | h | M | | 15 | 1/2" | 15 | 74 | 75 | 110 | F03+F04 | 36 | 3 | 42 | 3 | 9 | 10 | M12 | 0.6 | | 20 | 3/4" | 20 | 88 | 80 | 120 | F03+F04 | 36 | 3 | 42 | 3 | 9 | 10 | M12 | 0.7 | | 25 | 1" | 25 | 88 | 90 | 130 | F04+F05 | 42 | 3 | 50 | 3.5 | 11 | 12 | M14 | 1.1 | | 32 | 1 1/4" | 32 | 92 | 110 | 140 | F04+F05 | 42 | 3 | 50 | 3.5 | 11 | 12 | M14 | 1.6 | | 40 | 1 1/2" | 38 | 107 | 120 | 175 | F05+F07 | 50 | 3.5 | 70 | 4.5 | 14 | 15 | M18 | 2.4 | | 50 | 2" | 49 | 115 | 140 | 175 | F05+F07 | 50 | 3.5 | 70 | 4.5 | 14 | 15 | M18 | 3.7 | | 65 | 2 1/2" | 64 | 120 | 185 | 220 | F05+F07 | 50 | 3.5 | 70 | 4.5 | 14 | 15 | M18 | 7.6 | | 80 | 3" | 76 | 132 | 205 | 270 | F07+F10 | 70 | 4.5 | 102 | 5.5 | 17 | 18 | M22 | 12.8 |
| Connection | Threaded BSPP, Alternative NPT, BSPT | | Nominal diameter | 1/2"-3" | | Pressure rating | PN63 | | Face to face | DIN3202 M3 | | Temperature range | -20°C to +200°C | | Operation | Hand lever, pneumatic actuator, electric actuator |
