  • Lined Lug Butterfly Valves
  • A36
  • GENERAL INFORMATION

    Series A36 lined lug butterfly valve is split body designed for a wide variety of liners such as PTFE, EPDM, NBR, FPM, PU to fit a wide range of applications.
    PTFE is the preferred material for corrosive applications in chemical industry.
    PU is the preferred material for abrasive applications.
    EPDM is the preferred rubber for water industries.
    NBR is the preferred rubber for oil transportation.
    FPM is the preferred rubber for wide range of medium composition and temperature.
    Lug design makes the valve convenient for disassembling between flanges and work well for dead end service with short length in pipe line.

    FEATURES

    • ISO5211 direct mounting pad for easy automation
    • Isolation height according to plant prescription
    • Dirtscraper prevents moisture penetrating into the shaft area
    • Three PTFE impregnated SS316L bearings are provided for precision alignment of the disc-shaft
    • 3 layers sealing system ensures environment protection
    • PTFE seat and rubber seat version interchangeable each other• PTFE-liner for chemically toxic and highly corrosive media, rubber liner for various of industry applications
    • Silicon rubber energized back behind PTFE seat makes the sealing between liner and disc stable and offer a wide range of temperature
    • One-piece disc-shaft design reduces the valve torque and increases Kv
    • PTFE or rubber lined disc design option avoids high cost by expensive metal in corrosive applications
    • Bubble-tight shut of at full pressure rating
    • Can be disassembled, material-specific recycling possible
    • Wave shape flange face design ensures the flange sealing of seat face not damaged by flange pressing, also avoids shrink of seat inside diameter because of flange pressing









    ConnectionLug
    Nominal diameter2"-24"
    Operating pressure16bar for DN50-DN200, 10bar for DN250-DN600
    Flange accommodationDN50-DN300: EN1092 PN10/16, ASME B16.5 Class150, JIS B2239 10K/16K, BS10 Table D/E
    DN350-DN600: EN1092 PN10/16, ASME B16.5 Class150, BS10 Table D/E
    Face to faceEN558 Series 20, API 609 Table 1
    Top flangeISO 5211
    Tightness checkISO 5208 Category 3, API 598 Table 5
    Temperature range-40°C to +200°C, for rubber seat depending on different material
    OperationHand lever, pneumatic actuator, electric actuator

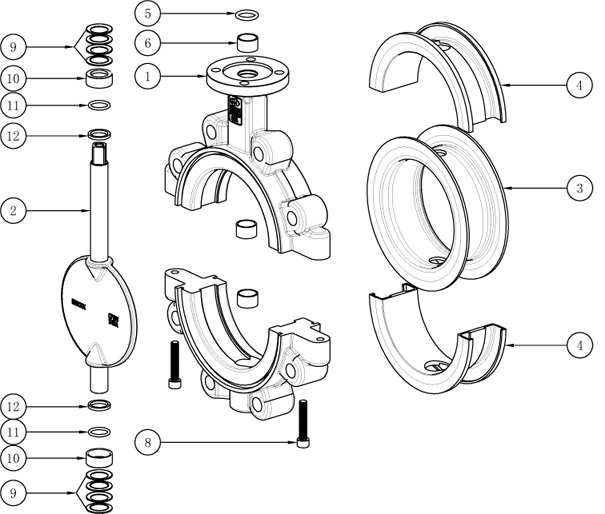

    No.Part nameMaterial
    1BodyGGG40
    2Disc/shaft one pieceCF8M1.4462CF8M FEP linedCF8 EPDM lined
    3SeatPTFE,FPM,EPDM,PU,NBRPTFEEPDM
    4Seat EnergizerSR
    5Weather sealNBR
    6BearingPTFE impregnated SS316L
    7GlandPTFE
    8ScrewSS304
    9Belleville washerSS304
    10Stuffing collarSS316
    11O ringFPM
    12V ringPTFE

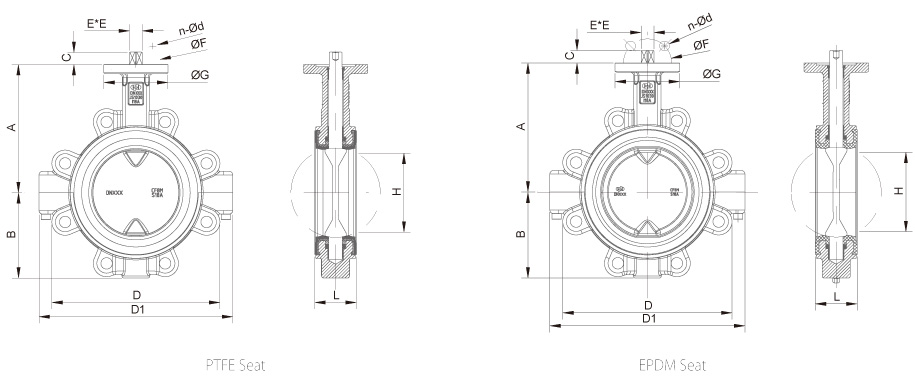

    SIZEABCDD1EFdGHLWT(kg)
    DNINCH
    502"1266513.5117147115086525432
    652 1/2"1387913.5131161115086559463
    803"1387913.5176206115086559463
    1004"1679717.52062361470109086525
    1255"18012917.523627214701090112567
    1506"20314218.525829417701090140568
    2008"22817218.532136317102121251916013
    25010"26621324.539543722102121252415822
    30012"29124224.546150922102121252907831
    35014"3322623051157127125141503317844
    40016"363303.530580640271251415037710264
    45018"397324.539630702361401817542511486
    50020"425357397007723614018175474127116
    60024"498419498239134616522210570154179
